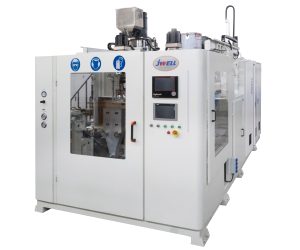

TCY-2L Single Station Max 2L Blow Molding Machine

A continuous extrusion blow molding machine with a moving mold, which can be equipped with 1-4 die heads, is a cheap blow molding machine.

Special design according to the processing performance of raw materials (high efficiency screw), material: 38CrMoAlA, nitriding treatment, hardness ≥800, brittleness ≤2 grade. Suitable for new materials, broken materials, recycled materials. Inverter + AC motor + hard gear reducer drive.

Central incoming die head, totally eliminating the converging line of products, the  surface is colorful and uniform; this die head is able to be used to match polyethylene, polypropylene and PVC and so on.

According to the different product, there is one series of die head for choice, such as double die ,tetra-die, four die, six die.

Adopt curved arm center locking mold, double linear guide mold moving and opening and closing mold, equipped with buffer mold moving oil cylinder, combined with servo hydraulic system driving, high speed and smooth movement without impact, the frame with lifting function, can be suitable for different products and molds.

With lifting function, hydraulic motor or motor drive. Increase the size of the transmission rod to ensure the transmission force, large lifting size, adapt to mold changes.

Hydraulic main system adopts servo system, proportional pressure, flow control, with oil pressure feedback, mold closing response speed, more accurate output,

More stable operation, high pressure, large torque, no pressure, flow loss, the system is more energy saving, long service life and so on. Hydraulic servo system adopts position, speed double closed-loop design, equipped with MOOG 100 point wall thickness controller, servo valve, control curve tracking more precision and other characteristics.

Electric control system adopts Japan Mitsubishi PLC for the whole machine action program control; WEINVIEW LCD display and touch screen for communication, parameter setting, modification and screen display; Each process parameter can be set and modified directly, and has a more perfect fault diagnosis function, screen operation is intuitive, convenient.

Safety electric eye double protection, with large safety distance, more accurate reflection characteristics.
